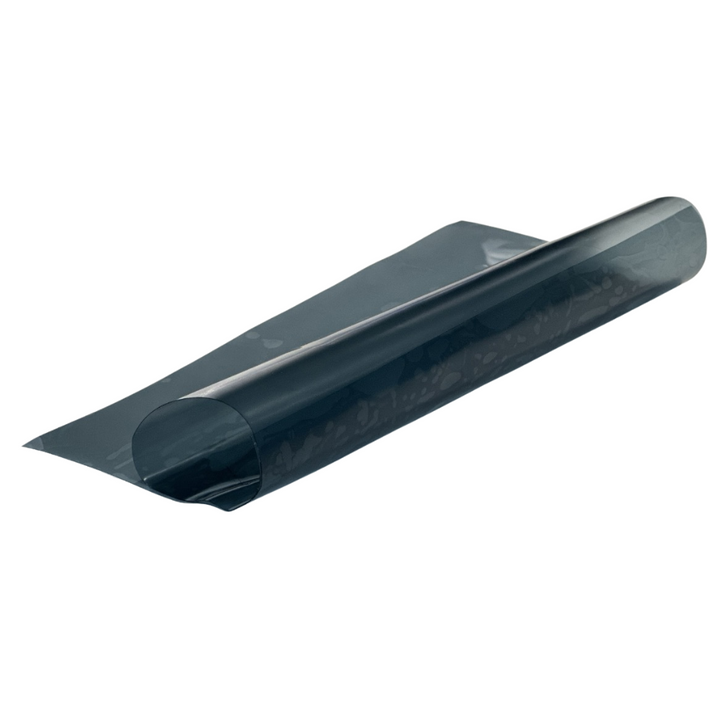

Quantum™ 20 Nano Rare Earth
Quantum™ 20 Nano Rare Earth is the ideal choice for rear passenger and cargo areas where deeper privacy and cooler comfort are desired. With a 20% VLT, it darkens rear glass for security while blocking heat and harmful UV. Rare-earth LSPR technology ensures superior performance without interfering with GPS, 5G, or toll systems.
Why drivers choose Quantum™ 20
- Maximum privacy: 20% VLT for rear seats and cargo space.
- Heat rejection: up to 92±3% IR blocked; 59±2% TSER.
- UV defense: blocks ≥99% UV to protect passengers and interiors.
- Interior protection: prevents fading, cracking, and damage to leather seats and trims.
- Glare reduction for a more comfortable ride.
- Signal-safe: non-metallic design ensures GPS, 5G, and toll tags work perfectly.
- Durable: 2.0 mil automotive-grade film with 8-year warranty.
Recommended applications
- ✔ Rear passenger windows
- ✔ SUVs and family cars needing stronger privacy
- ✔ Cargo areas for valuables protection
- ✔ Vehicles with leather interiors needing UV defense
Specifications
| Visible Light Transmittance (VLT) | 20 ± 2% |
| Infrared Block | 92 ± 3% |
| UV Block | ≥ 99% |
| Total Solar Energy Rejected (TSER) | 59 ± 2% |
| Thickness | 2.0 mil |
| Warranty | 8 Years (automotive, non-commercial) |
Compliance: Always check your local road authority’s regulations before installation.
Looking for exclusive distributor partners in Australia — contact us to explore opportunities.
Enquire NowLSPR Effect
How Rare Earth Nanotechnology Controls Heat and Light
What is LSPR?
Localized Surface Plasmon Resonance (LSPR) is the principle that powers Easyto’s rare earth window films. By using Lanthanum (La), these films resonate with solar infrared (IR) and ultraviolet (UV) radiation, blocking unwanted heat while maintaining high visible light clarity.
Unlike coatings for walls or roofs, LSPR is specifically effective when applied to transparent glass surfaces. This makes it the core technology behind our architectural and automotive films.
The Three Stages of LSPR
1. Blocking Harmful Radiation
Rare earth nanomaterials block up to 95–99% of incoming infrared and ultraviolet rays while allowing visible light to pass through, ensuring both comfort and clarity.
2. Converting Radiant Energy into Heat
When infrared and UV reach the Lanthanum (La) nanolayer, the film enters LSPR and absorbs/damps the radiation. That energy is then released as heat at the glass/film surface and carried away by natural air movement and conduction within the pane—rather than being transmitted indoors. Visible light still passes, keeping the glass clear while reducing solar heat gain.
3. Dual Thermal Performance
By controlling solar heat gain in summer and retaining warmth in winter, Easyto’s rare earth coatings and films provide dual seasonal benefits. This means lower cooling costs in hot months and improved comfort during colder months—all without active energy consumption.
Why LSPR is Different
Traditional Low-E glass relies on thin metallic layers that degrade and lose effectiveness over time. Easyto’s rare earth nanotechnology, powered by Lanthanum-based LSPR, delivers:
- ✔ Stable performance without oxidation or fading
- ✔ Superior heat and UV rejection
- ✔ High visible light clarity for natural daylight
- ✔ Sustainable energy savings with no wiring or maintenance
From Science to Real-World Benefits
LSPR resonance is at the heart of Easyto’s SmartShield™ architectural films and Quantum™ automotive films. By harnessing the unique interaction of Lanthanum with solar radiation, our films provide superior comfort, UV protection, and energy efficiency without altering the clarity of glass.
SkyShield™ Elastic Sunroof & Quantum™ Auto Film Warranty
Version: 1.0 | Effective: Sep 2025 | ABN: 41 688 512 138
Easyto Thermal Solution Australia Pty Ltd (“Easyto”, “we”, “us”) provides this Limited Warranty for installations of SkyShield™ Elastic Sunroof Film and Quantum™ Auto Films on passenger and commercial vehicles in Australia when installed by an Authorised Installer.
Warranty Periods
- Front windshield interior film: 8 years
- Front side windows (VLT 35) interior film: 8 years
- SkyShield™ Elastic Sunroof Film: 8 years
- Side & rear windows (VLT 20) interior film: 8 years
What’s Covered
- Adhesion without abnormal bubbling, large-scale blistering, or delamination
- Film integrity without cracking, fissuring, or embrittlement (not caused by external force)
- Edge bonding without adhesive failure, peeling, or curling
- Optical stability without severe discolouration (transmittance drop > 30% vs factory spec, verified by professional testing) or oxidation haze
Labour Coverage
For valid claims within 1 year of installation, we cover reasonable removal and reinstallation labour. After 1 year, the Warranty covers replacement product only (labour and access excluded).
Conditions
- Installed by an Authorised Installer per Easyto instructions, on original, undamaged, unmodified vehicle glass
- Keep proof of purchase and installation record
- Warranty registration by email within 30 days is recommended (send proof to info@easyto.com.au)
- Follow our Care & Maintenance
What’s Not Covered
- Normal wear and tear (minor scratches, abrasions, slight gloss reduction)
- Improper maintenance (abrasives, strong acids/alkalis, hard brushes, sharp tools)
- External force or human factors (impacts, accidents, vandalism, non-authorised workmanship)
- Pre-existing or subsequent glass defects (cracks, deep scratches, seal failure, frame deformation)
- Acts of God or extraordinary events (fire, flood, natural disaster)
How to Make a Claim
- Contact your Authorised Installer first. If unavailable, contact Easyto directly.
- Email info@easyto.com.au with subject “Warranty” and include proof of purchase, installation date, defect photos, and installer details.
- Provide access for inspection by Easyto or our agent. Unauthorised repairs may void coverage.
For valid claims, we will supply replacement product of like or similar quality and, if within 1 year, cover reasonable labour. Replacement does not extend the original warranty term.
Australian Consumer Law
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law (ACL). You are entitled to a replacement or refund for a major failure and to compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure. The benefits of this warranty are in addition to your rights under the ACL.
Care & Maintenance
- Do not clean the film for 30 days after installation
- Use mild, non-abrasive cleaners with a soft cloth; avoid harsh chemicals and sharp tools
- Do not apply tapes, stickers, or adhesives directly to the film
